Our Rema Vertical Return Systems are your answer when space is an issue. Our Vertical Return Systems take up just 18″ of floor space! Systems are quality constructed with an 1 1/4″ steel frame attached to an 11 gauge steel tank furnished with a Burks Pump, float assembly and gauge glass with fixtures.

Rema’s Vertical design generates greater pump head pressure, while reducing vapor lock.

  • Custom fabrication to your specs
  • Available in 11 gauge standard
  • Available in 3/16″ and Stainless Steel
  • Replacement tanks and parts available

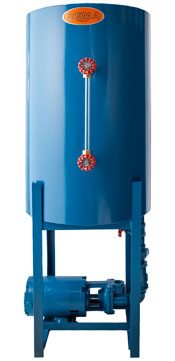

Rema Vertical Return Tank System
11 Gauge Steel Vertical Return Systems
ModelBoiler H.P.Tank SizeGallon CapacityPumpPump H.P.
BJHV-24-618x24263CT5M
BJHV-37-1018x24265CT6M½
BJHV-41018x30335CT6M½
BJHV-441518x30337CT7M¾
BJHV-52018x36407CT7M¾
BJHV-552518x364010CS5M1
BJHV-63018x424615CS5M1 ½
BJHV-74018x485320CS6M2
BJHV-85024x3670330CS7M3

Contact Us to find out more about Rema Dri-Vac’s vertical return systems.
